Traction Drive Systems & Advanced Elevator Technology
Combining Permanent Magnet Synchronous (PMSM) gearless direct drives, heavy-duty helical geared machines, and intelligent microprocessor control panels for up to 30% electricity savings.
Engineering That Lowers Power & Operating Costs
Direct-drive PMSM motors combined with smart idle sleep circuits reduce peak electrical kVA demand by up to 30%.
Traction Machine Architecture: Gearless PMSM vs. Geared
Permanent Magnet Synchronous Motor (PMSM)
Friction-free, oil-less motor with direct drive rotor sheave. Delivers immediate torque, silent vibration-free acceleration, and eliminates mechanical gearbox maintenance.
High-Torque Reduction Gear Machine
Precision centrifugally-cast bronze worm wheel coupled to a case-hardened alloy steel worm shaft in a rigid cast-iron oil bath. Built for extreme cargo and freight duty cycles.

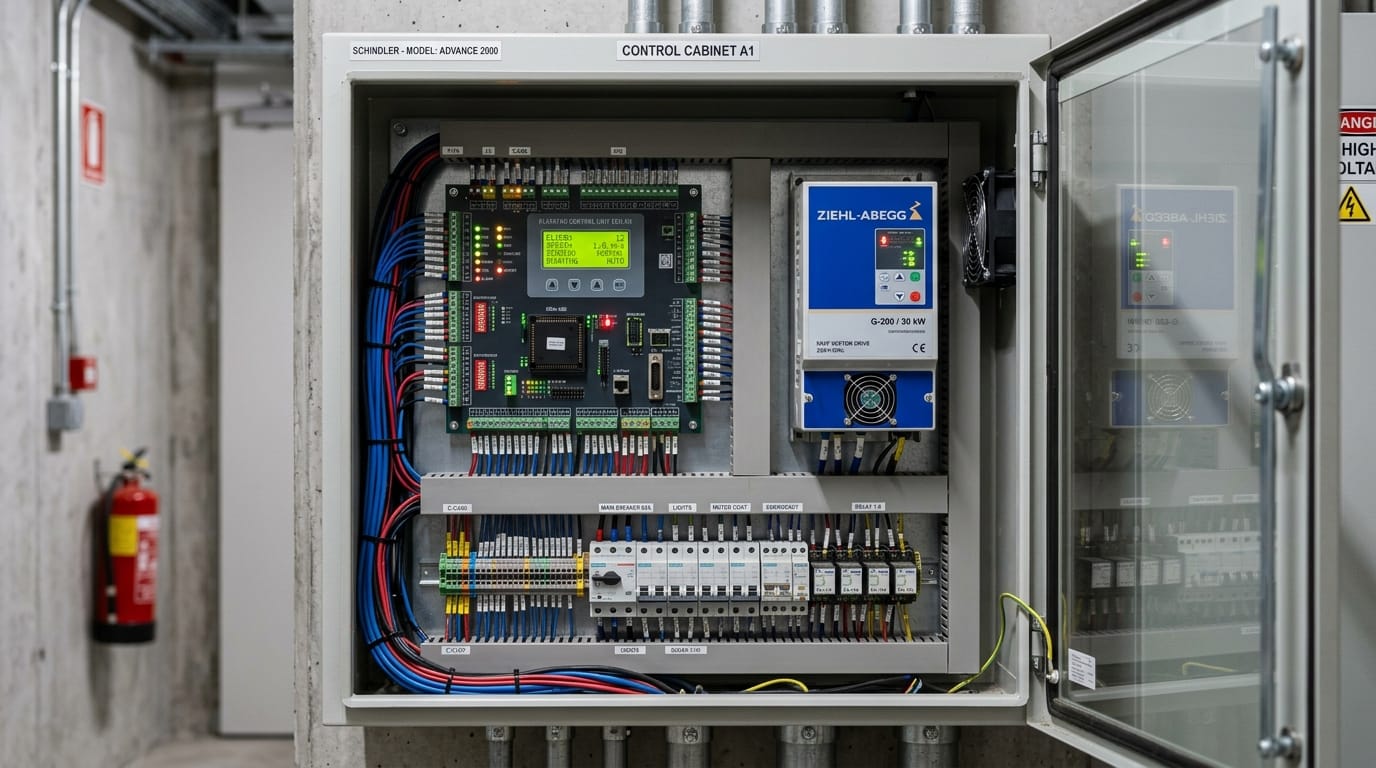

Microprocessor High-Technology Control Panel
The electronic brain of the elevator orchestrating motor torque, door safety, and emergency backup power.
Unified Logic & Power Inverter Electronics
Unlike traditional systems with separate relay banks and third-party inverters, Krupa uses an integrated motherboard architecture. This cuts electrical connection points by 70%, prevents wire oxidation faults, and speeds up building commissioning.
Integrated Drive (Elevator Management)
Combines elevator management logic and variable-frequency motor inverter on a single unified motherboard. Eliminates intermediate terminal wiring for maximum system stability.
Microprocessor with Integrated Controller
High-speed 32-Bit Dual-Core DSP running full CAN Bus 2.0 serial communications. Records up to 100 historical system events to ensure swift, transparent maintenance.
Automatic Rescue Device (ARD)
Smart emergency battery module that instantly activates when municipal power fails. Calculates lightest load direction, delivers passengers to the nearest landing, and opens doors.
MRL Gearless Integrated Controller
Ultra-slim vertical control cabinet specifically engineered to be embedded inside the top floor entrance architrave or hoistway pocket, eliminating rooftop machine rooms.
German V3F Variable Frequency Drive
S-Curve Motion Profiling
Parabolic velocity curves modulate frequency millisecond by millisecond, eliminating chest sensations and starting jerk.
Millimeter Leveling Precision
Optical encoder feedback brings the elevator cabin flush with the landing threshold within ±3 mm, preventing trip hazards.
Regenerative Dynamic Braking
Dissipates counterweight overhauling energy safely while reducing heat buildup inside the shaft.
Passenger Safety & Protection Ecosystem
Inbuilt Car Door Lock (CDL)
Prevents cabin doors from being forced open from inside while the elevator is in motion or outside the leveling zone.
128+ Beam Infrared Light Curtain
Continuous cross-beams protect passengers from floor to 1800 mm, reversing doors instantly before any physical touch.
Over-Speed Governor (OSG)
Mechanical flyball governor activates instantaneous progressive safety wedges to lock the car firmly to guide rails on overspeed.
Traction Machine Engineering: Gearless PMSM vs. Geared Traction
| Engineering Parameter | Gearless PMSM Machine | Heavy-Duty Geared Traction |
|---|---|---|
| Motor & Drive Architecture | Permanent Magnet Synchronous Motor (PMSM) with direct-drive rotor sheave | High-torque AC Induction Motor coupled to bronze worm / helical reduction gearbox |
| Energy Consumption | Up to 30% to 40% lower power draw; lower peak electrical kVA demand | Standard industrial efficiency with higher starting current |
| Acoustic Noise & Vibration | Sub-50 dB whisper-quiet operation; zero gear mesh vibration | 58 - 65 dB smooth mechanical hum with vibration isolation dampers |
| Lubrication & Maintenance | 100% Gear Oil Free — zero oil changes, no seal leaks, zero oil odor | Sealed synthetic oil bath requiring scheduled oil changes & seal checks |
| Machine Room Space | Total flexibility: fits inside hoistway top (MRL) or standard overhead room | Requires dedicated overhead machine room to house motor & gearbox base |
| Speed Range | 0.63 m/s up to 2.50 m/s with silky closed-loop vector control | 0.25 m/s up to 1.00 m/s optimized for heavy torque and steady transit |
| Primary Applications | Passenger elevators, luxury villas, commercial atriums, hospitals, MRL shafts | Heavy industrial goods lifts, high-tonnage freight, automobile car elevators |
Need Motor Sizing or Control Panel Schematics?
Our electrical engineering team provides motor power calculation sheets, ARD battery bank ratings, and CAD wiring diagrams.
