Goods Elevator
Sturdy & Heavy Carrying Solutions
KRUPA Goods Elevators are rugged industrial workhorses engineered to withstand heavy tonnage, forklift loading impacts, and demanding duty cycles. Manufactured with reinforced structural steel freight cabin frames, checkered non-slip floors, and heavy-duty traction machines to deliver seamless material transport across factories, warehouses, and logistics centers.
Affordable Goods Freight Elevator (Best Price Guarantee)
Direct manufacturing from our Kathwada GIDC works eliminates agent commissions and middleman markups. Includes 100% monopoly-free non-proprietary open controllers, cutting recurring AMC costs by up to 50%.
Elevator Overview & Operational Scope
KRUPA Goods Elevators are rugged industrial workhorses engineered to withstand heavy tonnage, forklift loading impacts, and demanding duty cycles. Manufactured with reinforced structural steel freight cabin frames, checkered non-slip floors, and heavy-duty traction machines to deliver seamless material transport across factories, warehouses, and logistics centers.
Annotated Structural & Mechanical Breakdown
Core electro-mechanical sub-assemblies engineered for Goods Elevator.
Heavy-duty helical-worm geared traction machine or dual-piston hydraulic power unit.
Robust industrial-grade Microprocessor Controller with overload sensor lockouts.
Heavy-gauge certified steel wire ropes with calibrated spring-loaded tension equalizers.
Reinforced T-section guide rails (T89/T127) securely anchored to concrete shaft beams.
High-density steel counterweight with cast-iron ballast blocks.
Heavy industrial vertical bi-parting doors, collapsible steel gates, or reinforced power sliding doors.
Flush steel or collapsible steel landing gates with mechanical cam interlocks.
1600 mm deep reinforced concrete pit with heavy structural I-beam buffer pedestals.
5100 mm / 5400 mm clearance providing safe headroom for high freight loads and overhead crane access.

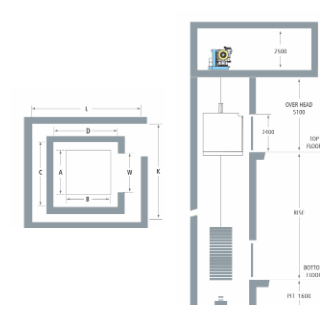

Official Hoistway General Arrangement (GA) Drawings
General Arrangement engineering layout drawings showing structural shaft, cabin interior, entrance width, and machine room parameters.
Goods Elevator — Technical Specifications
Standardized baseline engineering parameters for architectural planning and tender verification.
| Parameter | Official Specification |
|---|---|
| Application | Industrial warehouses, manufacturing facilities, logistics parks, shipping hubs |
| Rated Capacity | 500 to 3000 Kgs (High-tonnage custom engineering up to 5 tons) |
| Rated Speed | 0.25 to 1.0 MPS |
| Power Supply Voltage | 415V, 3-Phase, 50 Hz |
| Number of Entrances | 1 (Single Way) or 2 (Double Way / Through Cabin Access) |
| Cabin Width (A) | 1500 mm to 2000 mm (Dimension A - Freight Width) |
| Cabin Depth (B) | 1200 mm to 3000 mm (Dimension B - Freight Depth) |
| Pit Depth | 1600 mm |
| Overhead Height | 5100 mm to 5400 mm |
| Door Type & Operation | Collapsible Landing Gate / Vertical Bi-Parting / Two-Panel Sliding |
| Drive System | Heavy Duty Geared Traction Machine or Hydraulic Power Unit |
| Control System | Heavy-duty Microprocessor Control with Electronic Overload Indicator |
| Cabin Lighting | Impact-resistant enclosed LED bulkhead lamps |
| Emergency Rescue System | Manual brake release lever + optional Automatic Rescue Device |
| Remote Monitoring | Industrial Plant Telemetry Ready |
| Rated Load (Kg) | Car Inside A × B (mm) | Lift-Well C × D (mm) | Entrance Width (mm) | Machine Room K × L (mm) | Speed (mps) | Pit Depth (mm) | Overhead (mm) |
|---|---|---|---|---|---|---|---|
| 500 | 1500 × 1200 | 1900 × 1600 | 2100 | 2600 × 1600 | 0.25 To 1.0 | 1600 | 5100 |
| 1000 | 1500 × 1800 | 2000 × 1800 | |||||
| 1500 | 1700 × 2000 | 2600 × 2300 | |||||
| 2000 | 1700 × 2500 | ||||||
| 2500 | 2000 × 2500 | 2900 × 2700 | 5400 | ||||
| 3000 | 2000 × 3000 | 2900 × 3400 | 2700 | 2900 × 1600 |
- All Dimensions are in mm.
- Heavy-duty industrial construction engineered for pallet trucks and forklift loading.
- Available rated speed: 0.25 To 1.0 mps. Max travel height: 66 meters.
- All hoist way walls should be minimum 230 mm brick or 150 mm R.C.C.
Compatible Door Systems & Traction Machines
Configure your Goods Elevator with certified door entrance mechanisms and high-efficiency drive machines from the Krupa manufacturing catalog.
Compatible Door Configurations
Manual Collapsible Door
Heavy-duty lattice steel collapsible gate engineered for space-constrained residential and industrial hoistways.
Manual Imperforated Door
Solid interlocking steel sheet folding door providing complete visual containment and enhanced protection.
Center-Opening Autodoor (Four Panel)
Four-panel center-opening doors for wide freight, hospital trauma, and automotive elevator hoistways.
Vertical Bi-Parting Door (Goods & Car Lifts)
Vertical counterbalanced bi-parting steel doors that open upward and downward within the shaft.
Recommended Traction Machines
Built Around Your Requirements
Every building has distinct structural requirements. We deliver fully customized vertical transit solutions based on traffic application, rated capacity, travel speed, shaft configuration, available space, door arrangement, interior finishes, and technical specifications.
Requirement
Initial consultation understanding traffic load, passenger volume, building usage, and architectural vision.
Building Analysis
Physical on-site survey evaluating available shaft footprint, pit depth, overhead clearance, and power supply.
Elevator Selection
Recommending optimal elevator type (Passenger, MRL, Hydraulic, Villa, Goods) and drive mechanism.
Layout & Design
Preparation of custom civil General Arrangement (GA) drawings and structural calculations for consultants.
Customization
Selection of door systems, cabin wall finishes (KEC 01–11), ceiling fixtures, flooring, and smart operating panels.
Manufacturing
Precision fabrication at our direct Kathwada manufacturing plant with multi-stage quality and safety testing.
Installation
On-site erection by certified engineering crews with plumb line calibration and statutory safety audits.
Service & Maintenance
Ongoing lifecycle care with 24/7 breakdown support, genuine spare parts inventory, and IoT telemetry.
Goods Elevator Prices, Specs & Installation in Ahmedabad
QWhat is the price of an industrial goods elevator in Ahmedabad?
Industrial freight and goods elevators manufactured by Krupa Elevators start at an affordable price of ₹4,25,000* for standard 500kg–1000kg factory hoists, and up to ₹14,00,000* for heavy 5-ton industrial lifts. Our direct factory rates in Kathwada GIDC guarantee the best price for Gujarat manufacturers.
QCan Krupa goods elevators handle forklift and pallet truck loading?
Yes. Our freight cabins are built with reinforced structural steel channel frames, solid checkered steel flooring, and heavy-duty landing sills specifically calculated to withstand dynamic forklift rolling loads.
QWhat door options are available for industrial cargo lifts?
We manufacture heavy vertical bi-parting doors, collapsible steel gates, and automatic heavy-duty sliding doors with certified mechanical and electrical safety door interlocks.
QWhy choose Krupa for factory goods elevators in Gujarat?
Being located in Kathwada GIDC, Ahmedabad, we understand Gujarat's industrial demands. We offer heavy structural durability, quick spare delivery, and zero proprietary lock-in on maintenance.
Planning a Goods Elevator Installation?
Get in touch with our engineering team for free site surveys, custom CAD layout design, and verified civil shaft calculations across Gujarat and Western India.
